無錫市興百利機械設備有限公司

WUXI XINGBAILI MACHINERY AND EQUIPMENT CO.,LTD.
咨詢電話:18168863192
menu

產品目錄

白俄羅斯風篩清選機 UNIVERSAL GRAIN SEPARATOR,,MEGA’’

白俄羅斯風篩清選機 UNIVERSAL GRAIN SEPARATOR,,MEGA’’

關鍵詞:

咨詢電話:

熊經理 18168863192

周經理 13665101927

產品介紹


普遍的糧食分離器,,大型''

應用

通用谷物分選機主要用于對谷類、豆科、谷類作物、油菜等谷物和種子的初、初、二次清洗。

本機用于生產線上的空氣篩分離器,可提供糧食或種子。


設計特點

-分離器將顆粒物質流分離成3 - 7個餾分;

-模塊化吸塵系統,可提供各種修改:

p -初步,l -工業,s -種子清洗(圖1);

-篩面z形排列,可對物料進行準確分選(圖2);

-允許通過重新排列接收托盤來改變篩板的功能用途。(圖3);

-驅動機構不需要調整(采用自動張力裝置和齒輪馬達)(圖4-5)。

樣式

大型

12-3/2

15-3/2

12-5/2

15-5/2

生產能力,t/h

-初步凈化

40

50

60

80

-首次的清選

20

25

30

440

-第二次清選

4

5

8

10

電機裝機功率,千瓦(無風管、風機、旋風)

4.25              6.05

重量,kg

2300

2500

3000

3300

整體尺寸,mm

-長

2750

-寬

1850

2150

1850

2150

-高

2500

3450


UNIVERSAL GRAIN SEPARATOR,,MEGA’’

APPLICATION

The universal grain separator is designed for preliminary, primary and secondary cleaning of grain and seeds of cereals, leguminous, cereal crops and canola.

The machine is used as the air-sieve separator in production lines and providers food grains or seeds.


DESIGN FEATURES

-       separator provides separation of the grain material flow into 3 to 7 fractions;

-       modular aspiration system can be supplied in various modifications:

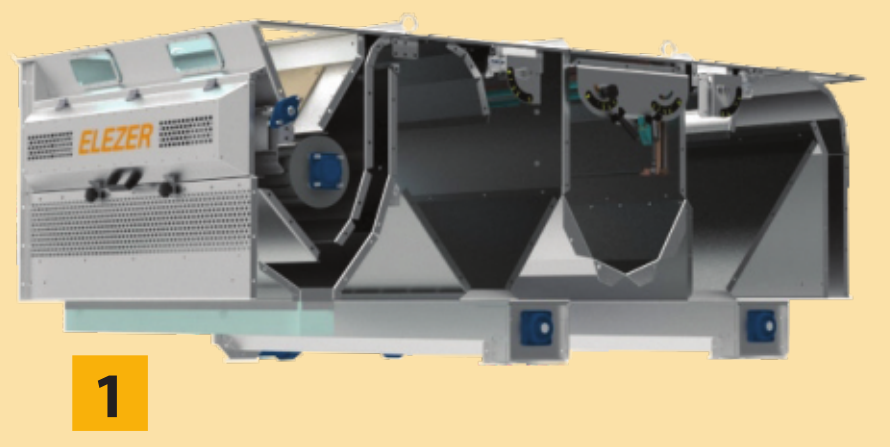

p – preliminary, l – industrial, s – seed cleaning (Drawing 1);

-       z-arrangement of sieve surfaces provides accurate sorting of the material (Drawing 2);

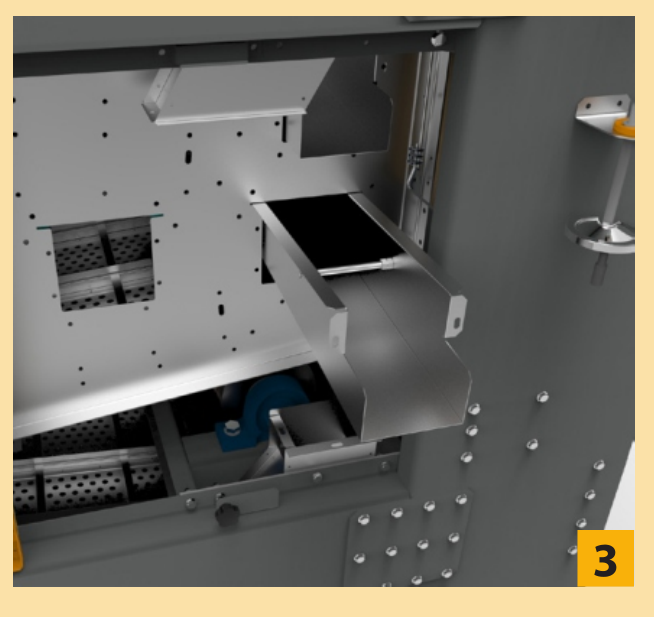

-       it is allowed to change the functional purpose of the sieve planes by rearranging the receiving trays. (Drawing 3);

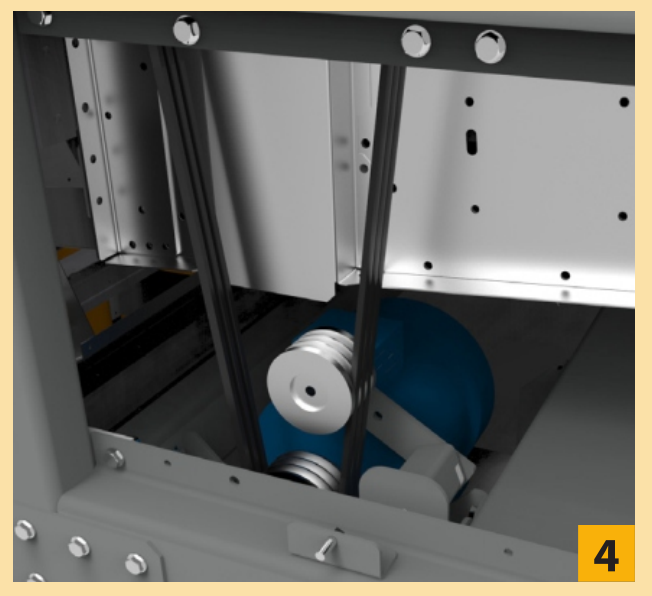

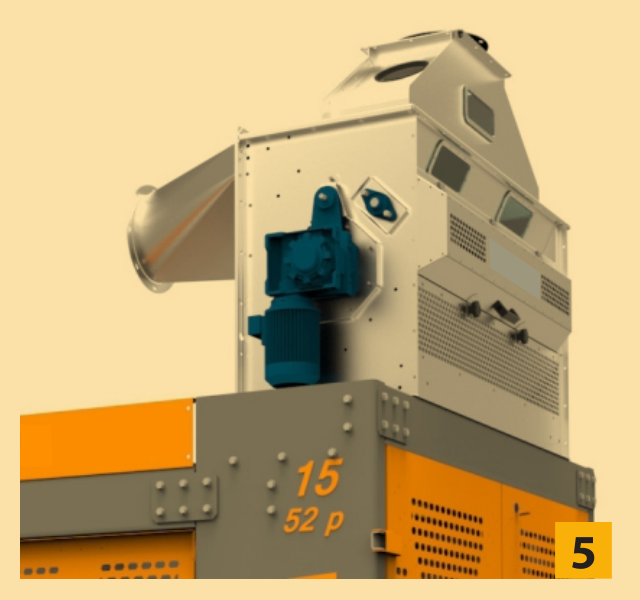

-       drive mechanisms do not require adjustment (automatic tensioners and gear motors are applied) (Drawings 4-5).

Model

MEGA

12-3/2

15-3/2

12-5/2

15-5/2

Productivity, tons/hour

-preliminary cleaning

40

50

60

80

-primary cleaning

20

25

30

440

-secondary cleaning

4

5

8

10

Installed power of electric motors, kW(without   air pipes, fan and cyclone)

4.25              6.05

Weight, kg

2300

2500

3000

3300

Overall dimensions, (mm)

-length

2750

-width

1850

2150

1850

2150

-height

2500

3450
