產品目錄

土耳其比重清選機 Gravity separator G.MAC-010

土耳其比重清選機 Gravity separator G.MAC-010

關鍵詞:

咨詢電話:

熊經理 18168863192

周經理 13665101927

產品介紹

比重清選機 Gravity separator G.MAC-010

Akyurek Technology G.MAC-010 Gravity Separator - machines for the perfect separation of products with a different weight, grading by specific weight of product with very slight differenced in size and/for weight, which cannot be separated by screening (width) or by indented cylinders (length).

Akyurek Technology G.MAC-010重力分離器-用于完美分離不同重量的產品的機器,按產品的重量進行分級,產品的尺寸和/或重量差別很小,不能通過篩分(寬度)或凹痕圓柱體(長度)來分離。



APPLICATIONS 應用

-Seed processing of grain, cereals,corn, fine seed, legumes, cotton seeds, oil seeds, paddy

糧食、谷類、玉米、良種、豆類、棉籽、油籽、稻谷的種子加工

-Food processing separation of impurities in vegetables, lentils, peas, chick peas, beans, coffee peanuts, hazelnuts, almonds, etc.

食品加工分離蔬菜、扁豆、豌豆、鷹嘴豆、豆類、咖啡花生、榛子、杏仁等雜質。

-Separation of metals, plastic, rubber, wood, minerals.

分離金屬,塑料,橡膠,木材,礦物。

-Sorting of tree seeds, pulses, grasses, herbs.

樹木種子,豆類,草,草本植物的分類。



WORK PRINCIPLE 工作原理



The separator works on a fluidised bed principle; air is forced through the deck causing the light fraction to float above the heavy fraction. The deck is reciprocated causing the heavy fraction to move uphill, while the light fraction floats downhill. Variations in deck speed, air volume, deck material, deck angle (lengthwise and sidewise), and take-off points allow effective separation to be achieved on almost ant dry product. The Re-Sort Conveyor Belt which is located below the Gravity Separator’s Platform conveys the middling seeds to the feeder elevator so the seeds that are not certain of their quality is re-separated thus allows the operator to control the out put quality in finer results.

分離器的工作原理是流化床;空氣被強制通過甲板,使輕組分漂浮在重組分之上。甲板是相互作用的,使重的部分上山,而輕的部分下山。甲板速度、空氣量、甲板材料、甲板角度(縱向和橫向)和起飛點的變化允許在幾乎干燥的產品上實現有效分離。位于重力分離器平臺下方的再分選輸送帶將中粒種子輸送至給料器提升機,從而將不確定其質量的種子重新分離,從而使操作人員能夠更好地控制出料質量。

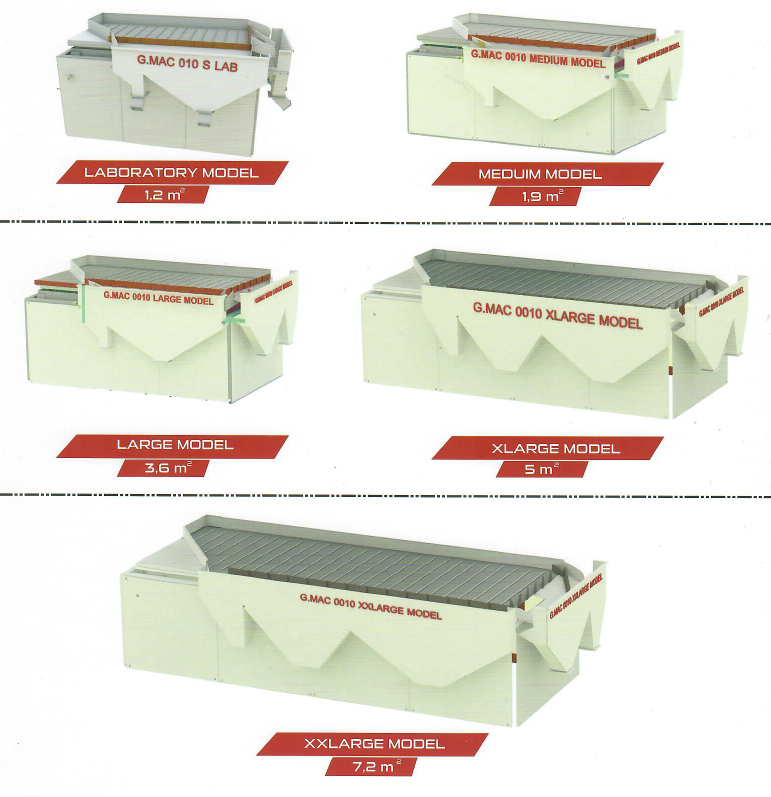

Technical Data

技術數據

G.MAC-010 LAB

G.MAC-010 MEDIUM

G.MAC-010 LARGE

G.MAC-010 XLAR.

G.MAC-010 XXLAR.

CAPACITY 生產能力






CORN, WHEAT, SOYABEANS

玉米、小麥、大豆

1 t/h

2 to 4 t/h

4 to 6 t/h

6 to 8 t/h

8 to 12.5 t/h

PEAS

豌豆

750 kg

1.5 to 2 t/h

3.5 to 5 t/h

5 to 7.5 t/h

7.5 to 10 t/h

CLOVER, PAPE SEED

三葉草

350 kg

0.8 to 1.25 t/h

1.5 to 2.5 t/h

2.5 to 3 t/h

3.5 to 4.5 t/h

COFFEE GREEN

生咖啡

1.3 kg

3 t/h

6.5 t/h

10 t/h

15 t/h

FAN DRIVE 風扇驅動

1 unit 3 KW

3 unit 4 KW

3 unit 5.5 KW

4 unit 5.5 KW

4 unit 5.5 KW

ECCENTRIC DRIVE MOTOR

偏心驅動電機

1.5 KW

1.5 KW

1.5 KW

2.2 KW

3 KW

TABLE AREA

工作臺規格

1.2 m2

1.9 m2

3.6 m2

4.6 m2

7.2 m2

AIR REQUIREMENT

空氣需求量

35

150

250

450

600

DIMENSIONS 尺寸






LENGTH 長

1740 mm

3000 mm

3000 mm

3330 mm

3330 mm

WIDTH

1640 mm

4100 mm

4100 mm

4995 mm

4995 mm

HEIGTH

1400 mm

3900 mm

3900 mm

3390 mm

3390 mm

NET WEIGHT 凈重

1500 kg

1500 kg

2000 kg

2500 kg

3500 kg

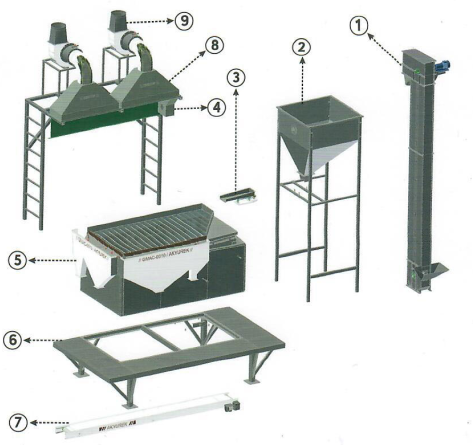

ASSEMBLY VARIATIONS  組件變化

① Elevator 提升機

② Intake pre-storage hopper 進氣預儲料斗

③ Linear Feeder 線性給料機

④ Cascade級聯

⑤ Gravity Separator 重力分離器

⑥ Platform 平臺

⑦ Re-sort Conveyor Belt 重新分揀傳送帶

⑧ Partial Dust Hood 局部防塵罩

8a.Full Dust Hood 全防塵罩

⑨ Centrifugal Aspirator 離心式吸氣器

⑩ Cyclone 旋風分離器
